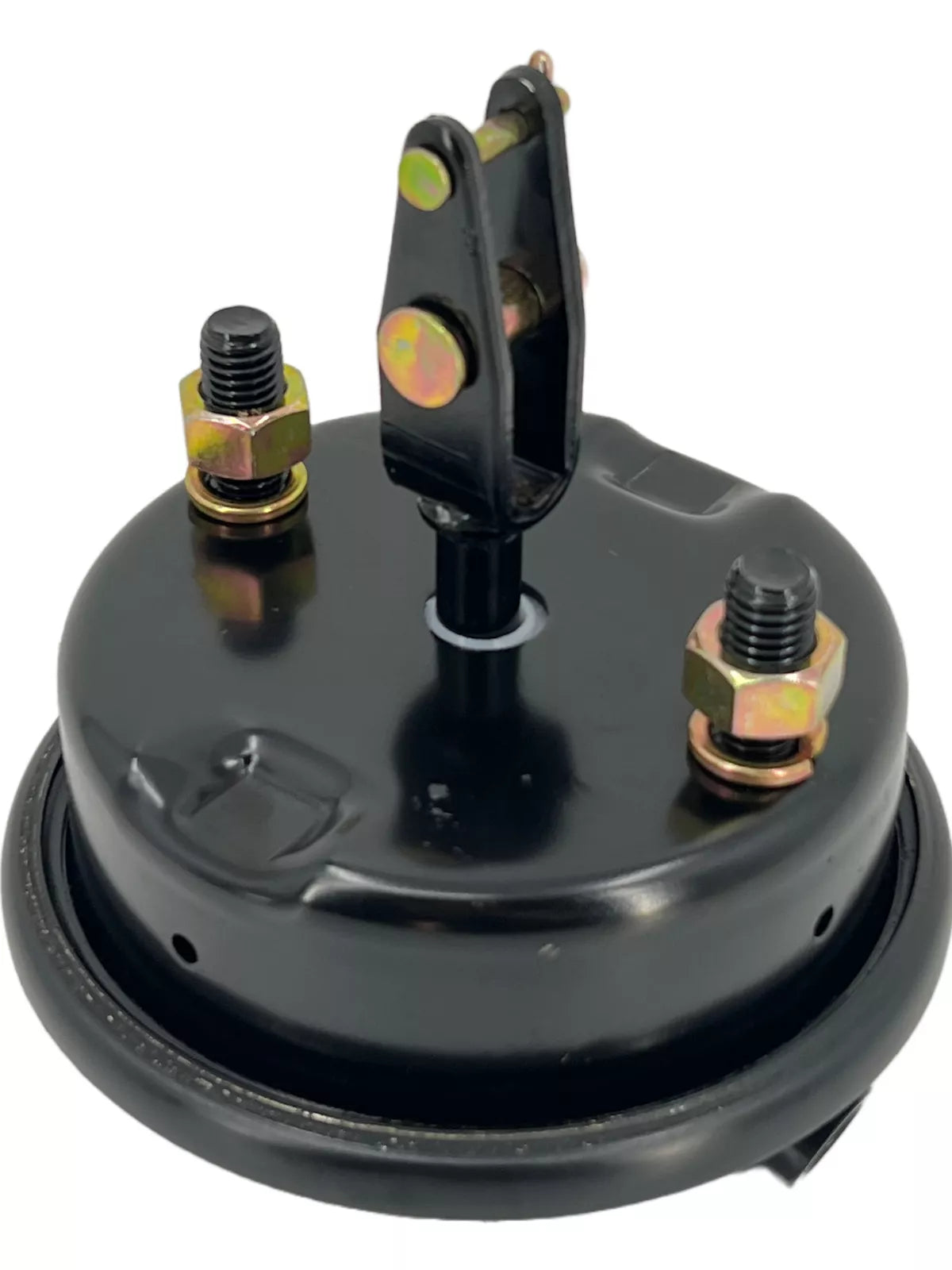

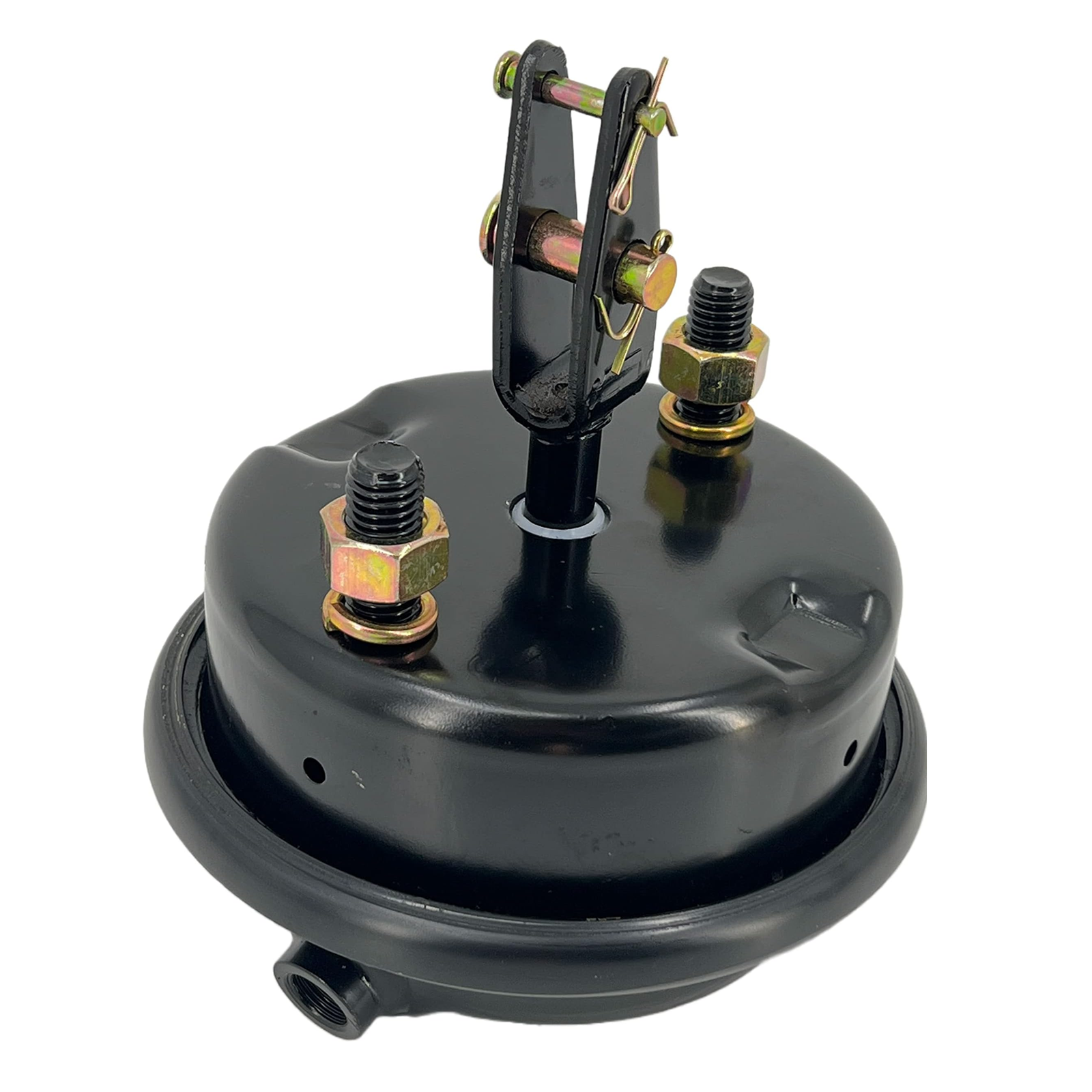

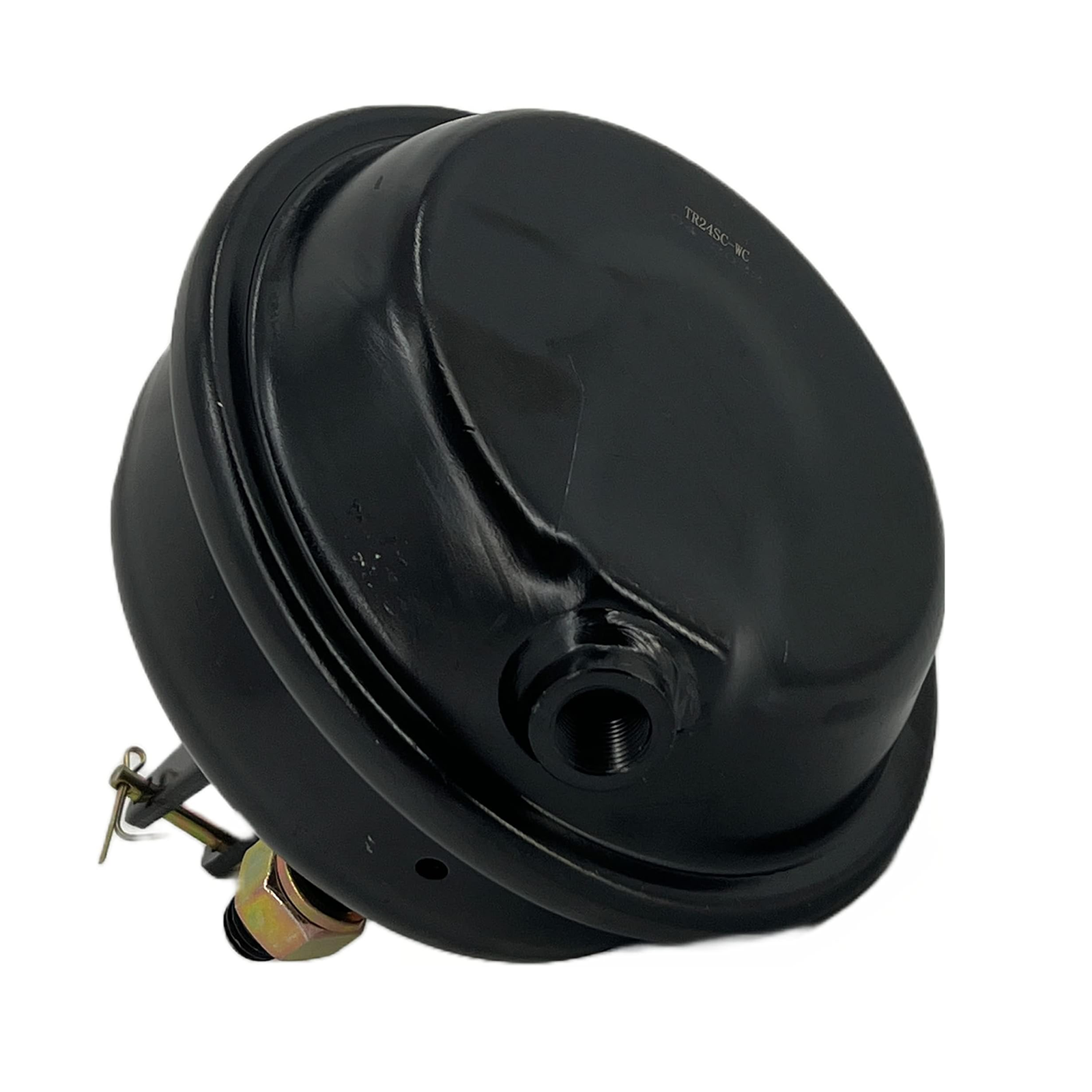

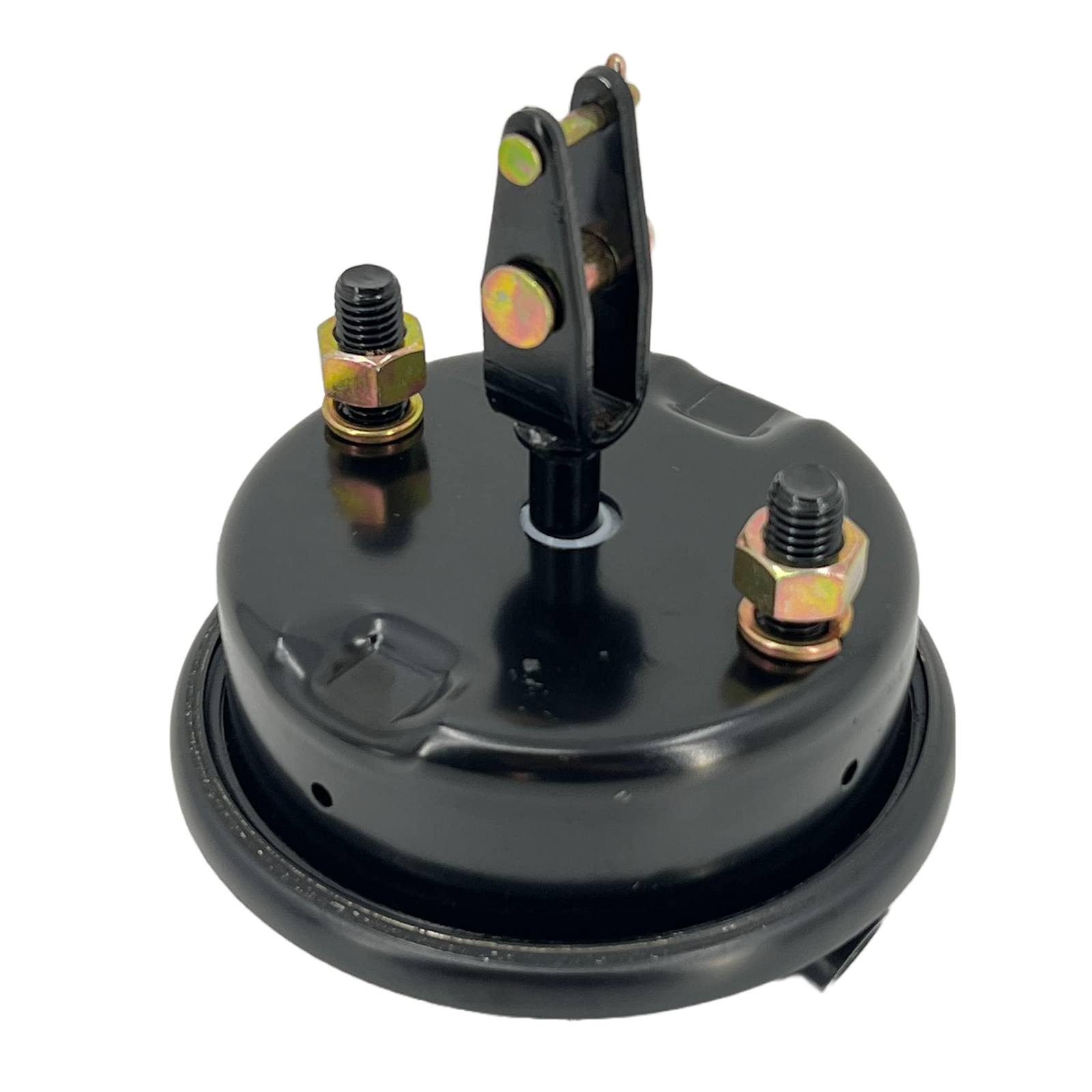

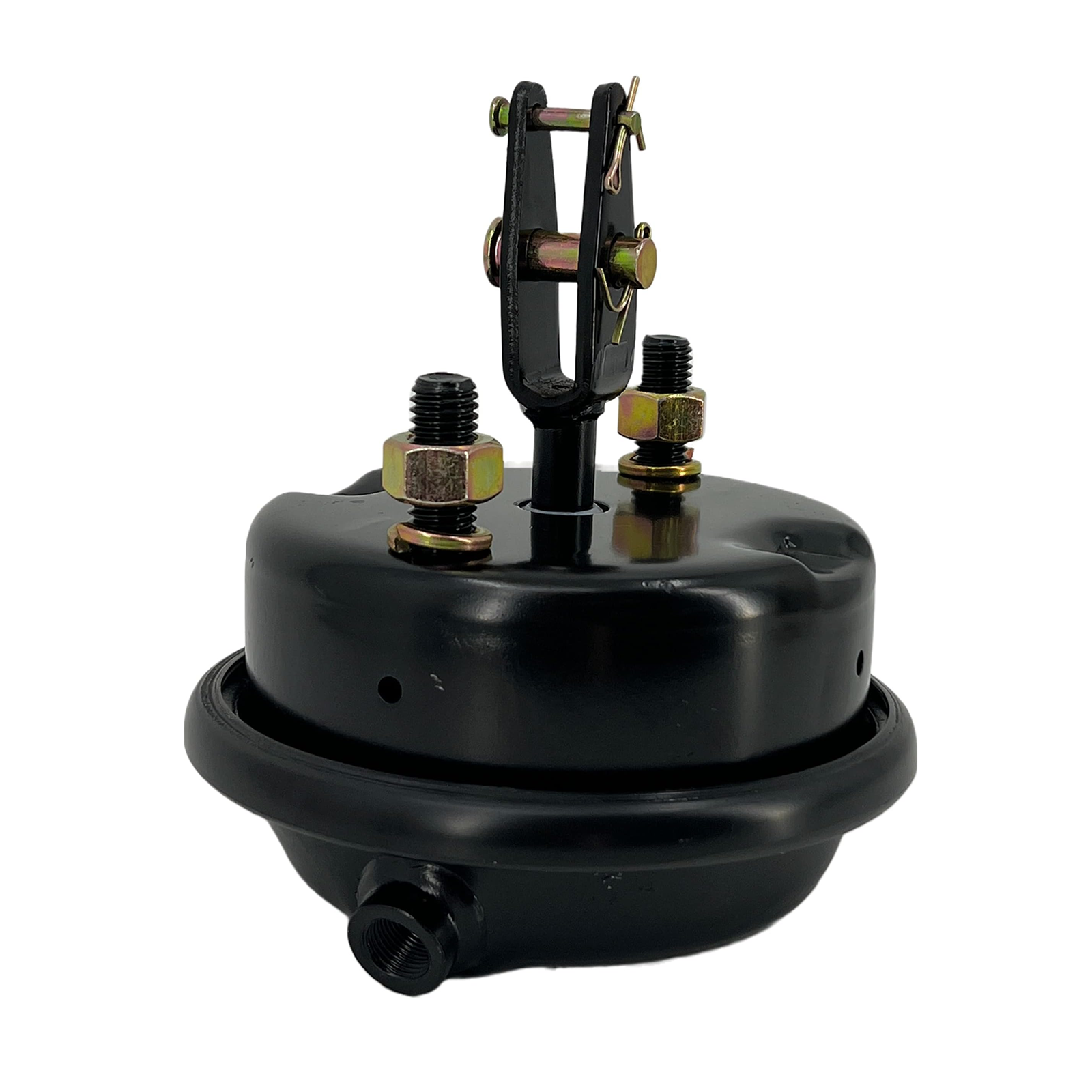

Long Stroke Air Brake Chamber Service Type 24 with Welded Clevis(TR24SC-WC)

Long Stroke Type 24 Air Brake Chamber for Semi Truck Trailer

Upgrade your semi-truck or trailer's braking system with our Long Stroke Type 24 Air Brake Chamber, designed for a reliable 2.5" stroke and featuring a durable welded clevis design, ideal for heavy-duty applications.

Specifications：

• Type: Service Type 24
• Stroke Length: 2.50 IN (63.5 MM)
• Joint Type: Double Clamp Band
• Clevis Arm Link Pin Diameter: 0.25 IN (6.35 MM)
• Bushing Pin Diameter: 0.50 IN (12.7 MM)
• Style: Welded Clevis/Yoke
• Clamp Angle: 0°
• Stud Thread Size: 5/8-11 UNC-2A
• Stud Length: 1.50 IN (38.1 MM)
• Stud Spacing: 4.75 IN (120.7 MM)
• Push Rod Length: 3.90 IN
• Service Ports: Side and Center (Center Plugged) - Both 3/8-18 NPT
• Operating Temperature: -45°F to 175°F (-43°C to 79°C)

Design Highlights

• Steel Pressure Housing: Powder-coated for corrosion resistance, with resistance-welded air ports.
• High-Quality Diaphragm: Resistant to extreme temperatures, ensuring consistent performance.
• Sturdy Construction: Made from 10-gauge steel with a flat bottom for added stability.
• Self-Piloting Dust Shield: Protects internal components from dust and contaminants.
• Pin Spacing: 1.30 IN (33 MM)

REPLACEMENT:

• Bendix K058691
• MGM 1427901, 1427902
• Automann 179.M1427901, 179.SC24XLW225
