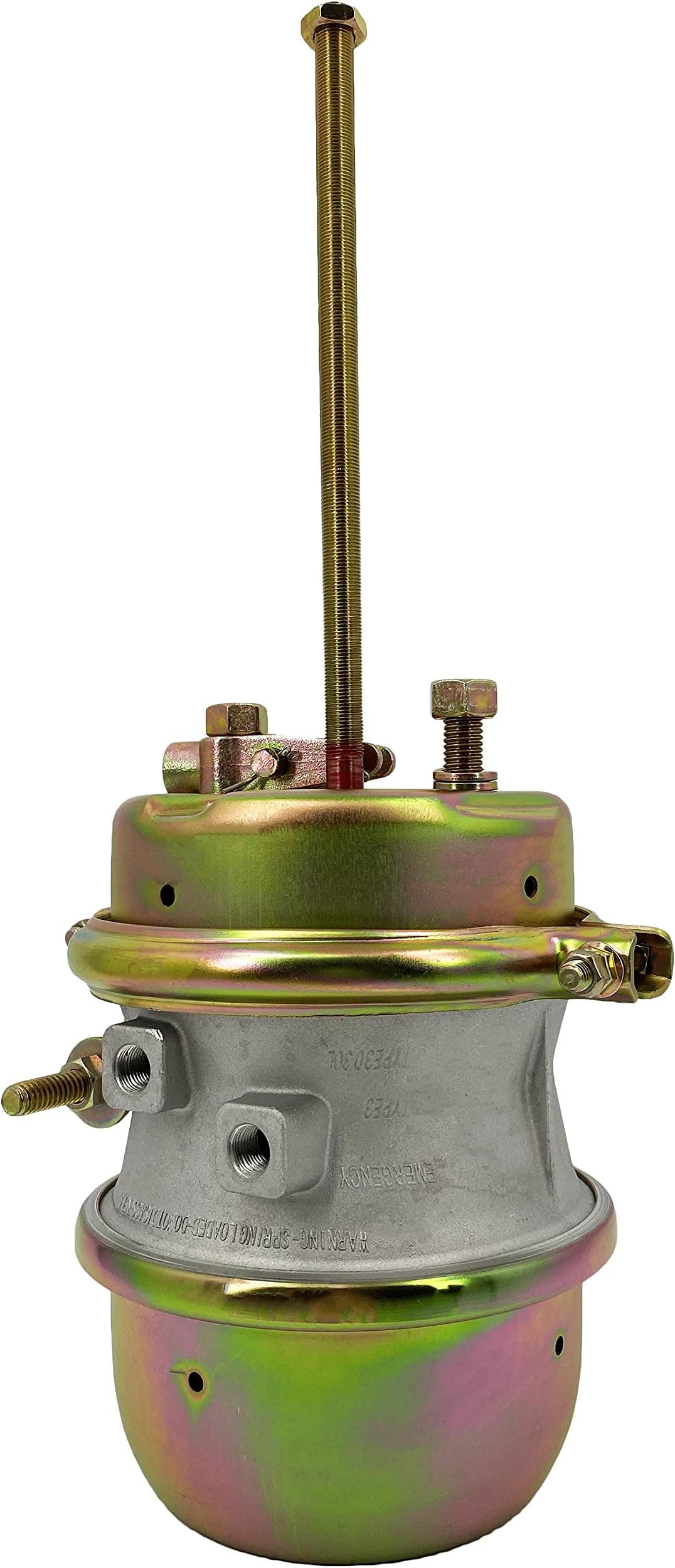

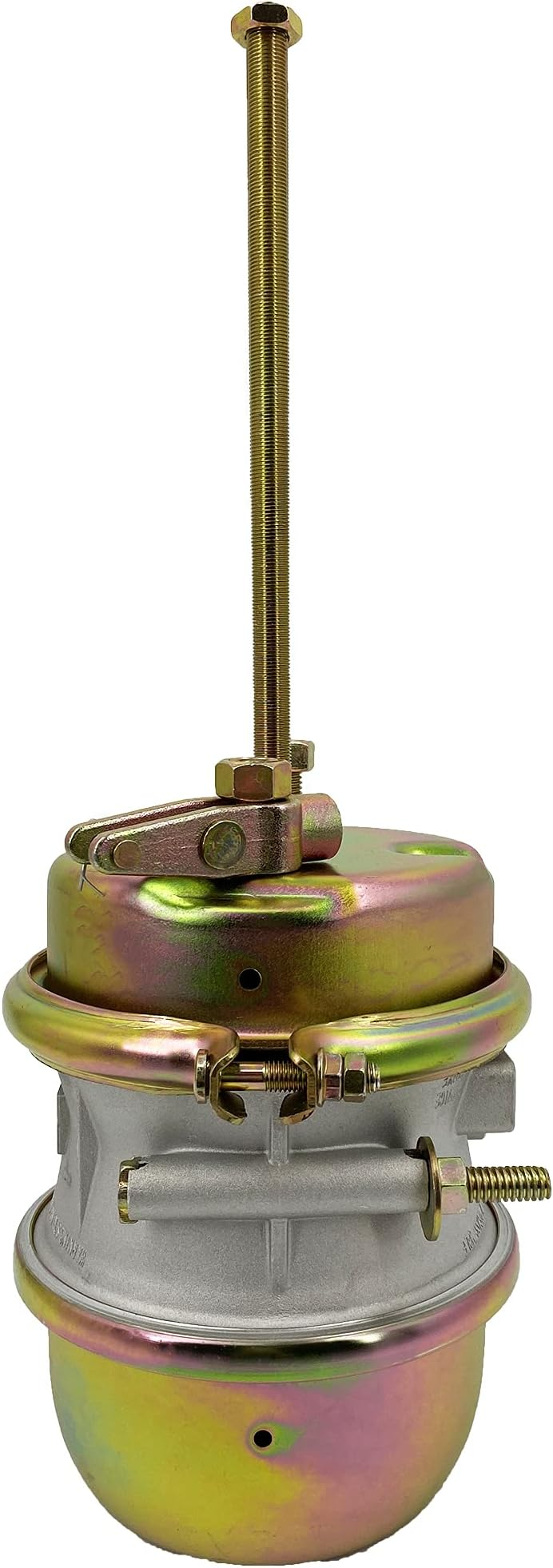

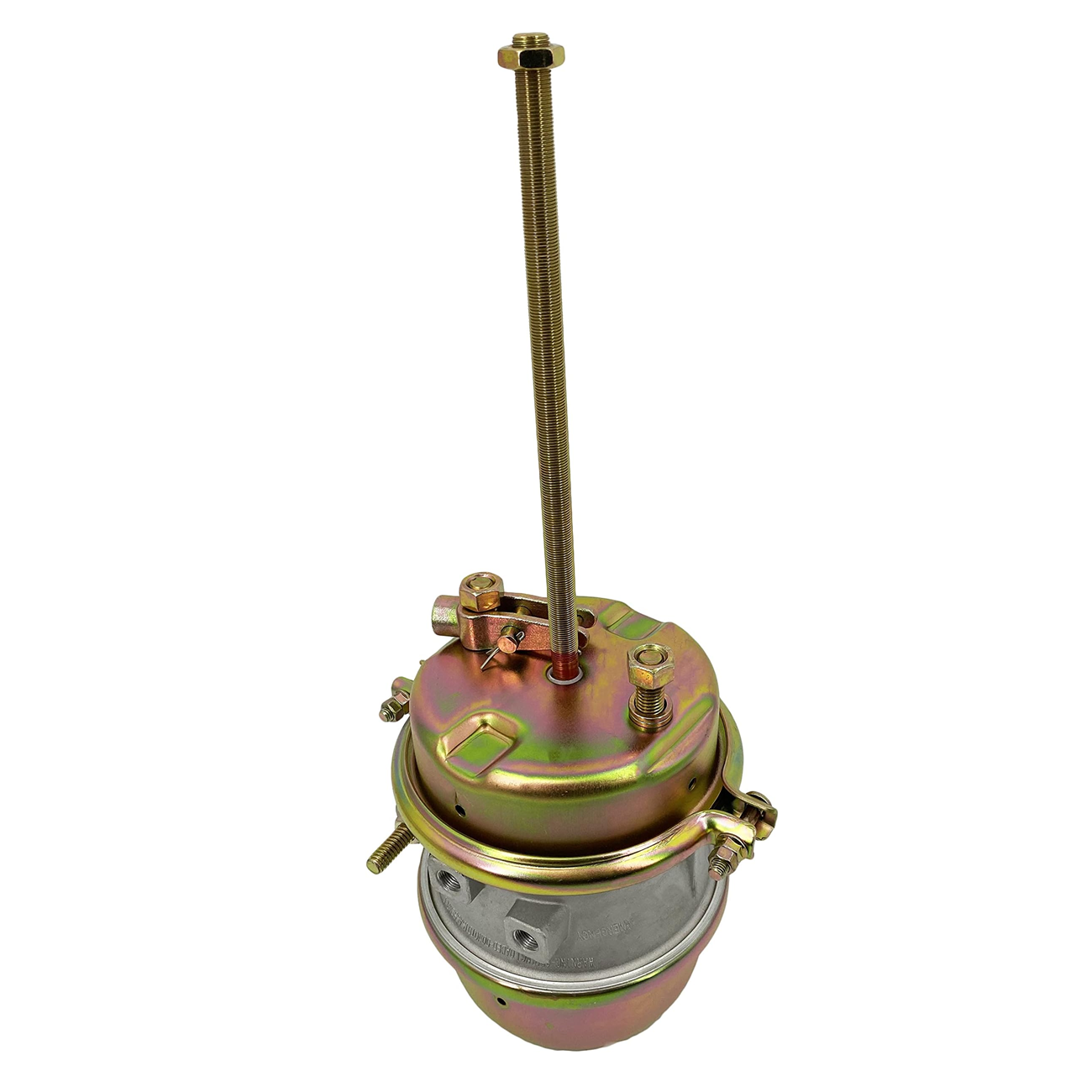

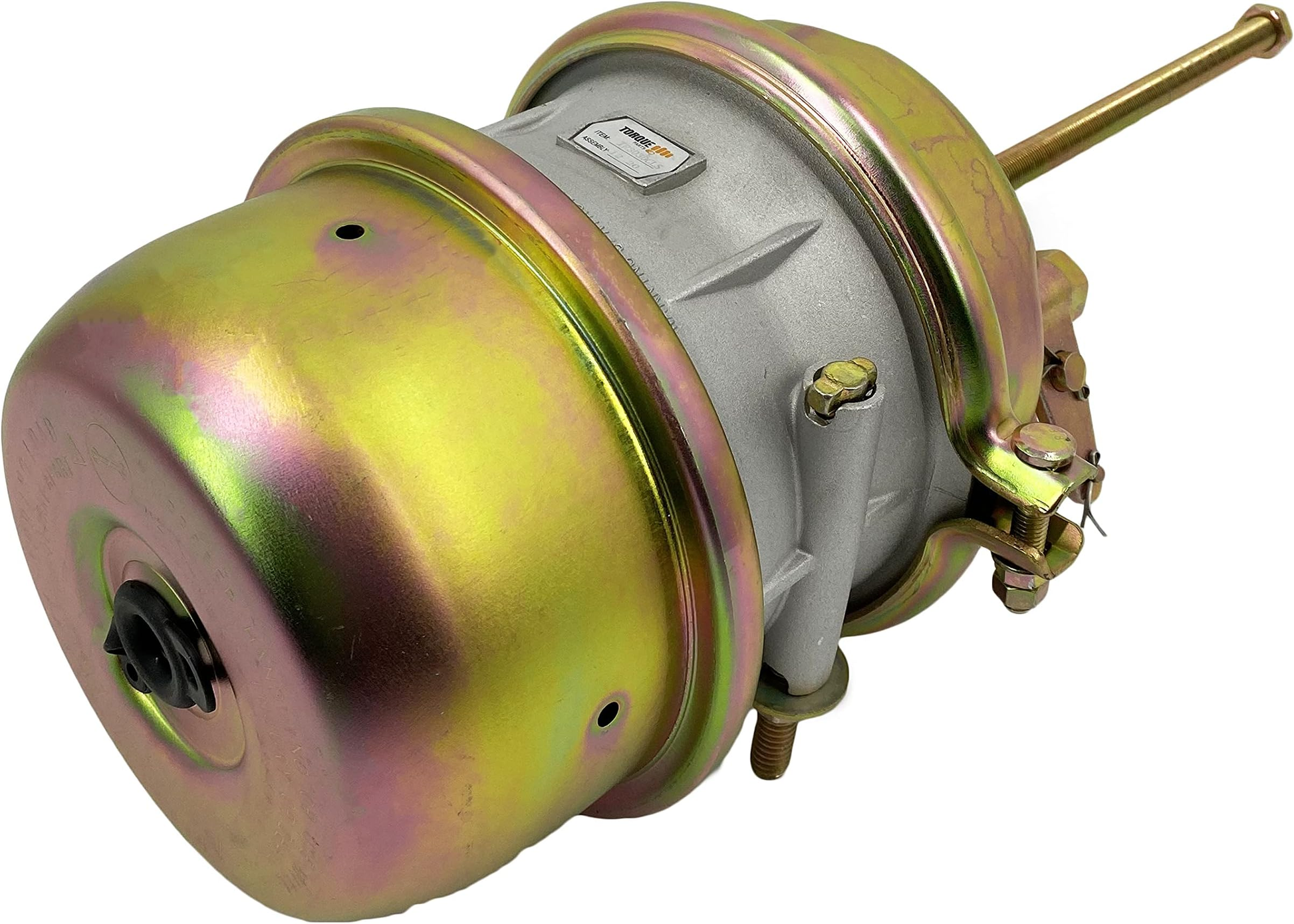

30/30 Square Bosses Air Brake Chamber 3" Long Stroke 3030 for semi Truck Trailer | Replaces Bendix NT3030ELS80 NT3030ELS99 Haldex GC3030L LC3030L GC3030LR

Manufactured from top quality components, this is your best option and inexpensive replacement for you rebuild, repair, and maintenance needs - an OE replacement product for your damaged or aged factory part.

Feature

• TYPE - Long Stroke Air Brake Chamber Type 3030
• REPLACEMENT - Haldex GC3030L LC3030L GC3030LR // Bendix NT3030ELS80 NT3030ELS99 // Midland 3030054 MBI GC3030LR // Automann 179.SB3030SL // Watson and Chalin 12963
• SPECS - Actuator Type Size: 3030 // Stroke Type: Long // Available Stroke: 3", 76mm // Length from mounting bracket to end of Spring Housing: 9-7/8", 251mm // Length of Piggyback: 7-3/8", 187mm // Dimension at rolled Spring Housing flange: 8-5/16", 211mm // Dimension at Service Clampband: 10-3/16" // Pushrod Length from face of Service Housing: 13" // Weight: 21.8 lbs. , 9.9 kg.
• FEATURES - Superior Power Spring Technology; Advanced powder coating process; Resists corrosion and fatigue // Double O-ring Centerseal; Two o-rings for positive sealing and plastic bearings for long life // World Class Diaphragm; High quality rubber compound, resistant to heat and cold // Rugged Service Housing; 9 gauge steel, powder coated // Self-piloting Dust Shield

Fitment

•  semi-Truck Trailer
